PW30-003

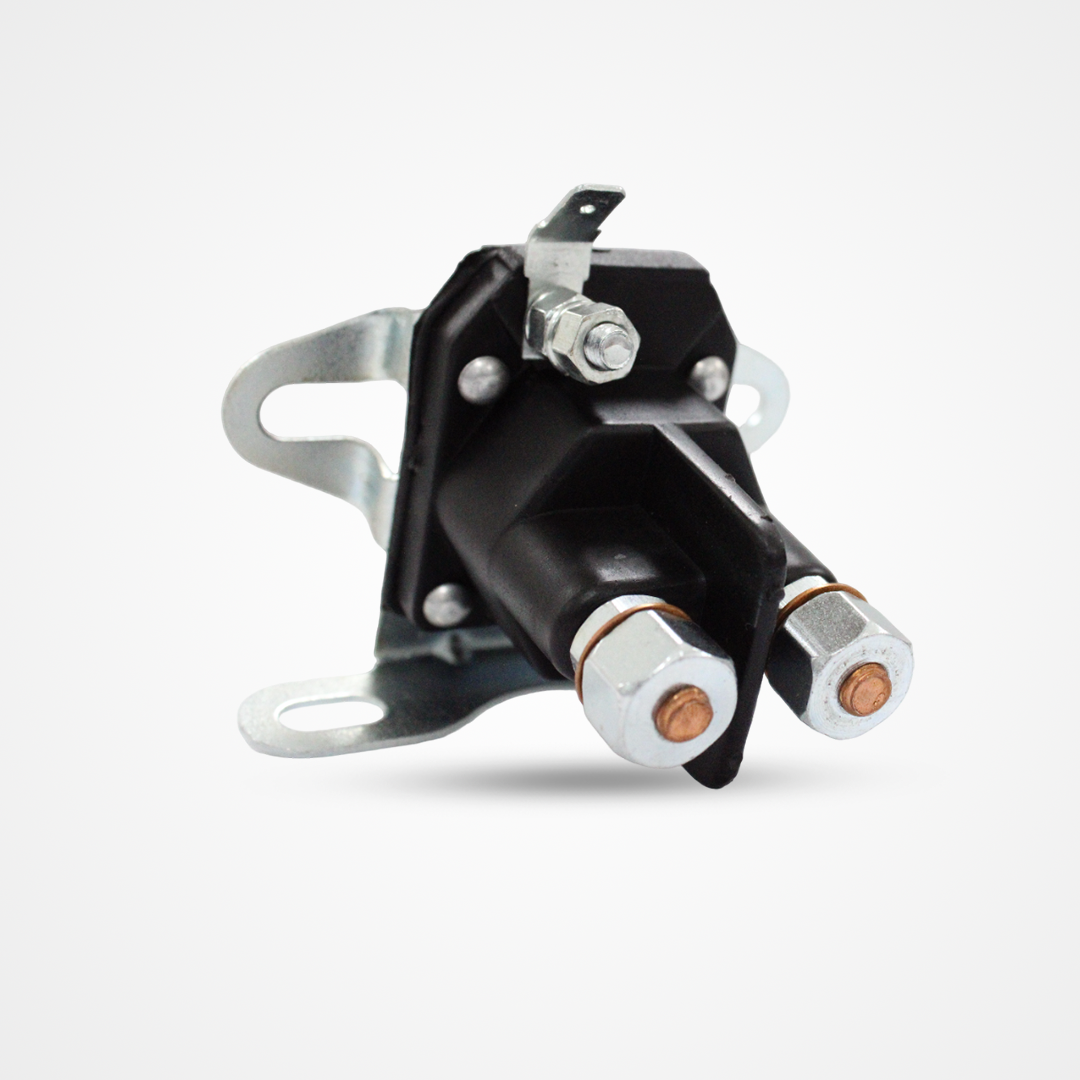

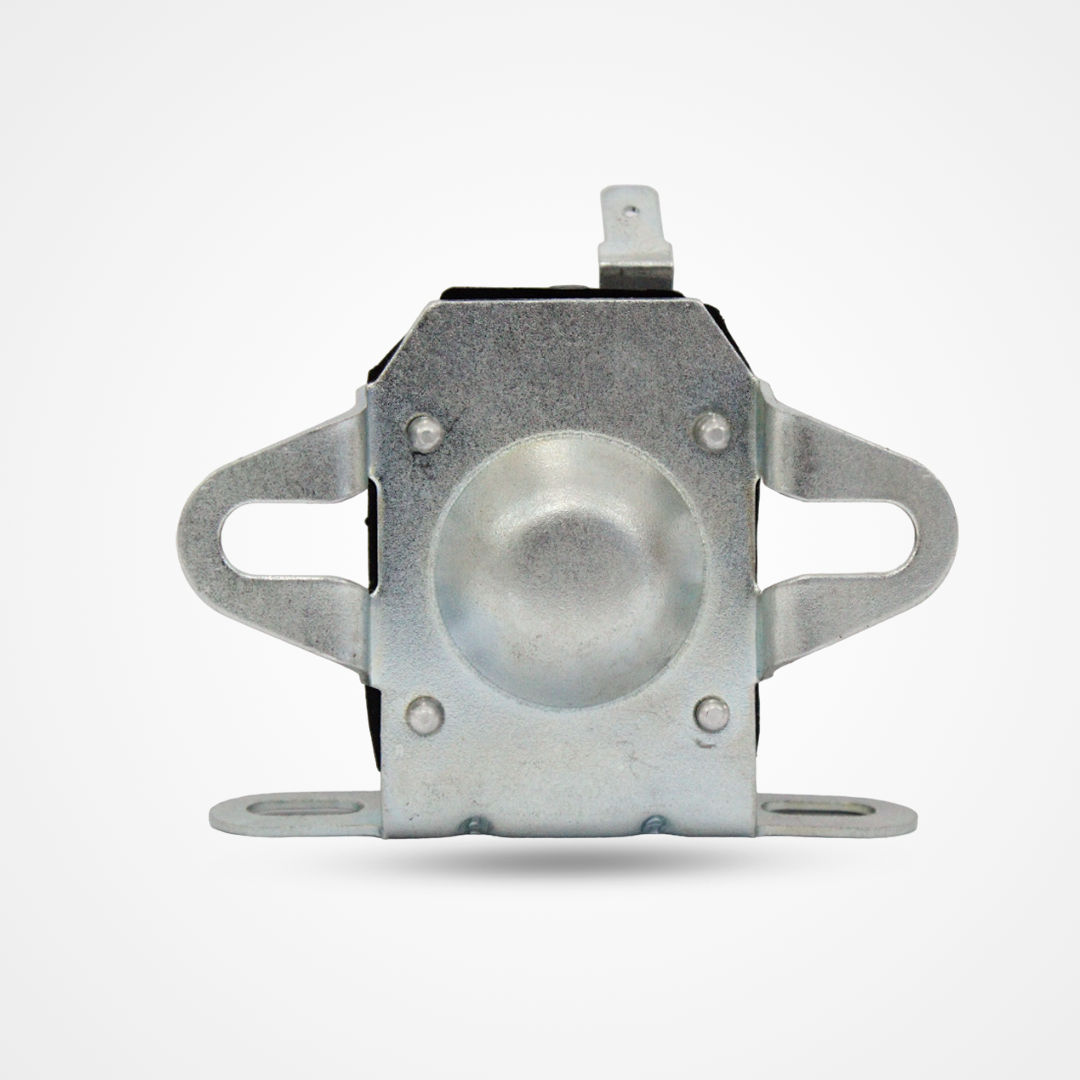

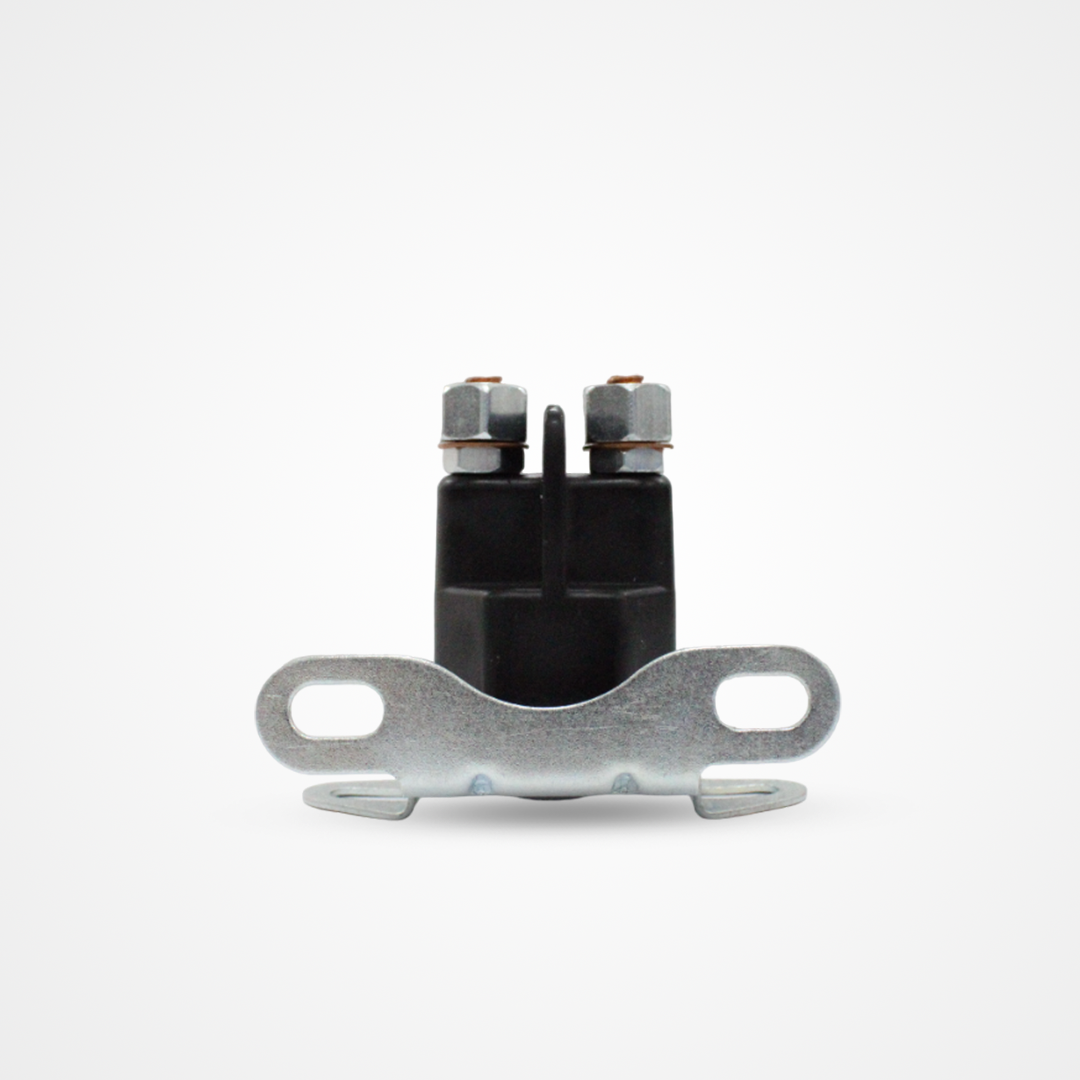

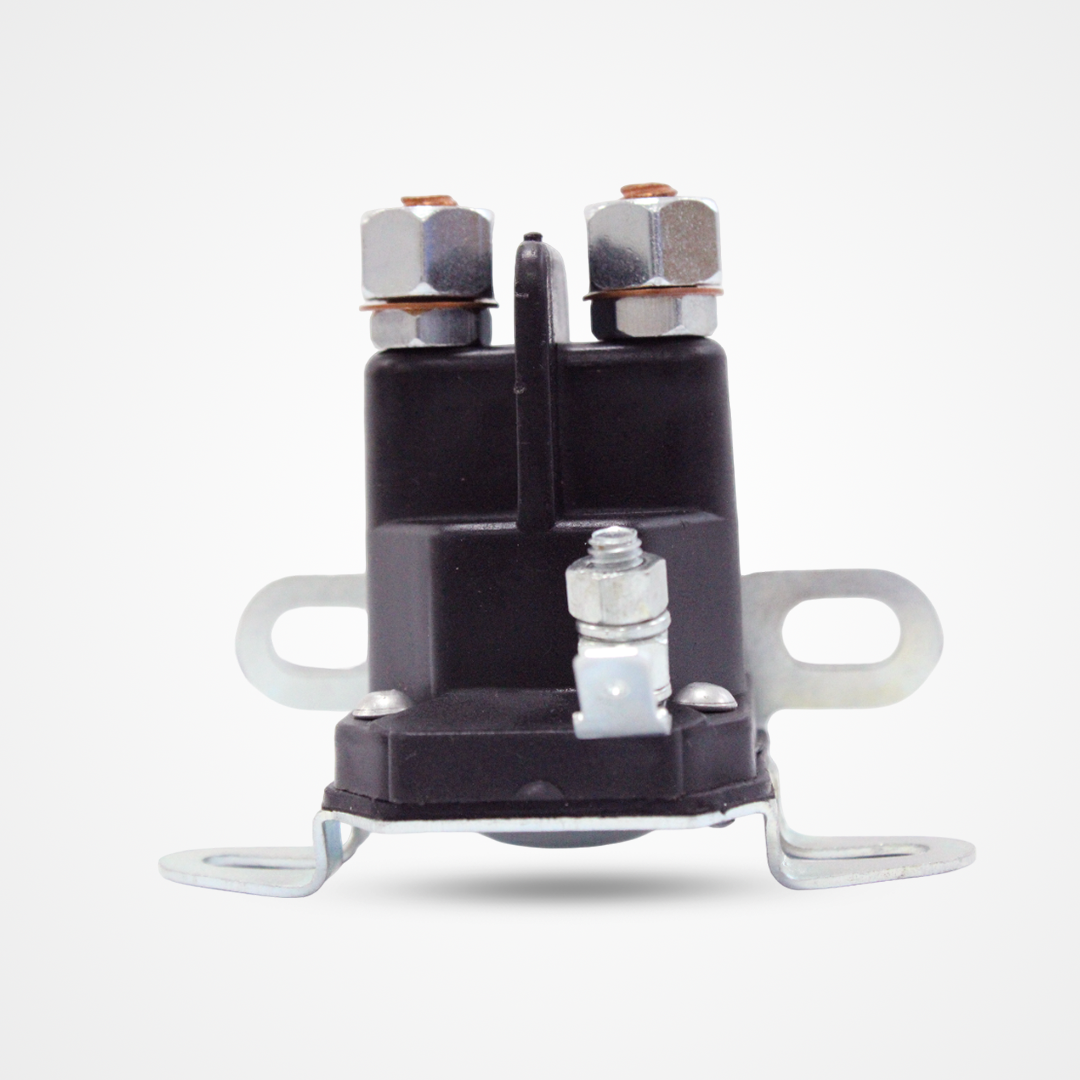

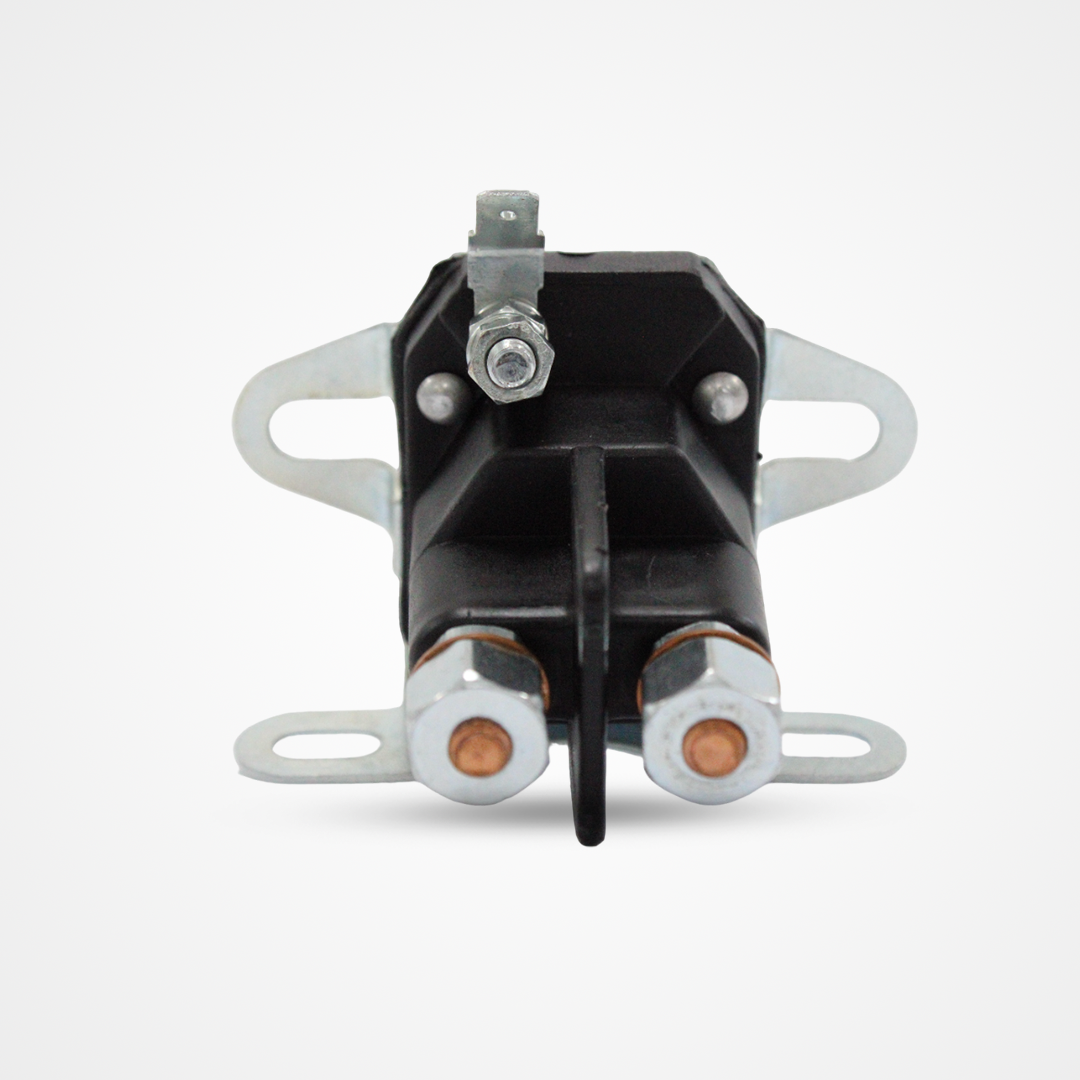

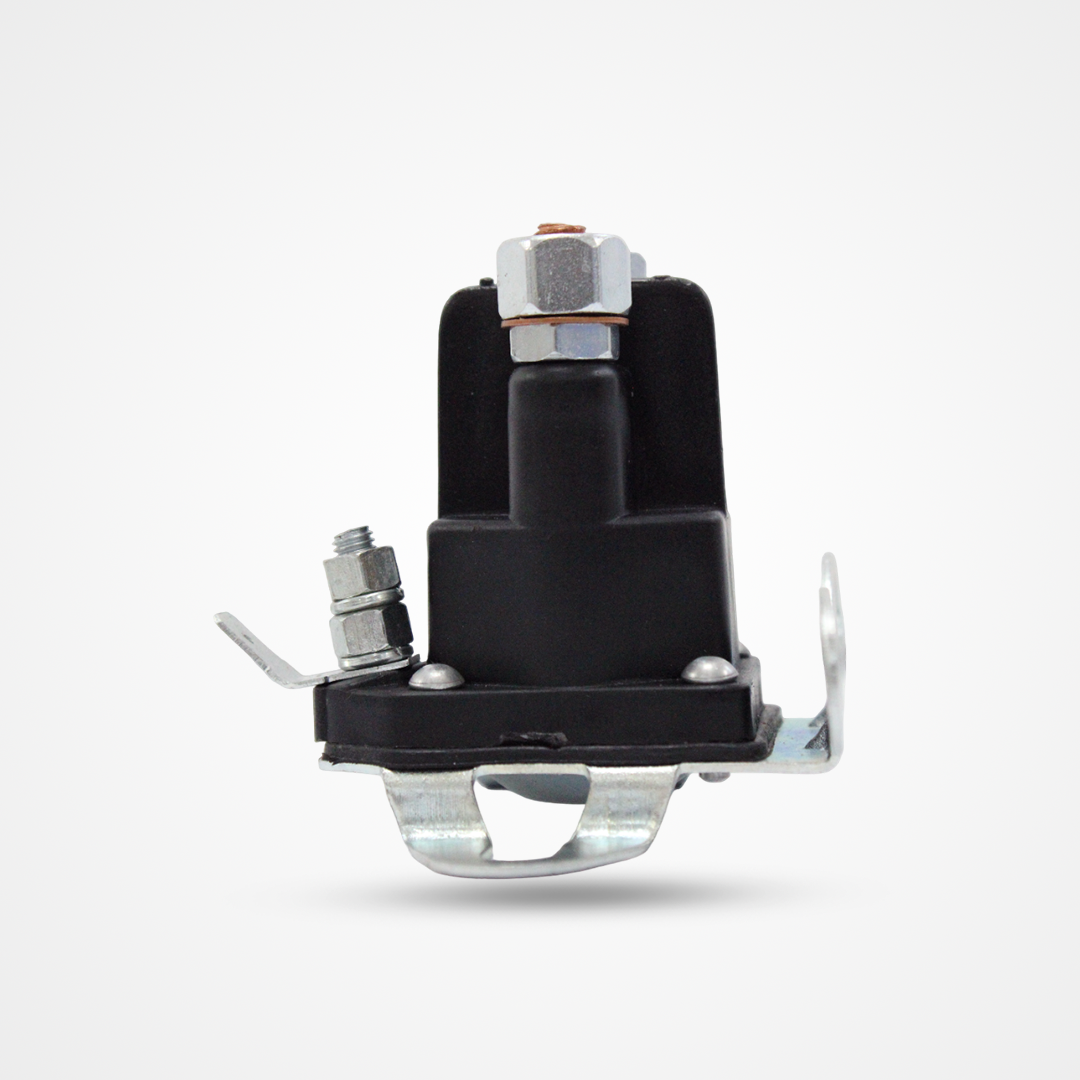

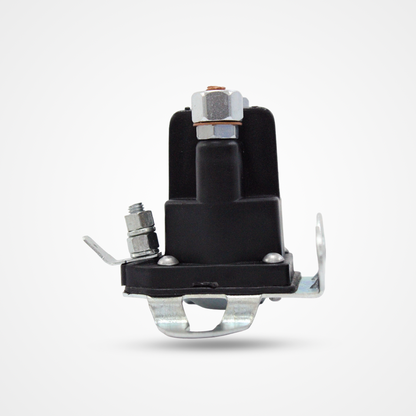

12V Starter Solenoid fits John Deere 48035A AM103290 691656

Name: 12V Starter Solenoid fits John Deere 48035A AM103290 691656
Brand: Parts World USA
SKU: PW30-003
Price: 13.49 USD
Availability: InStock
Rating: 5.0 (1 reviews)

$13.49 USD

$13.49 USD ~~$16.99 USD~~

30 Days Return
2-3 Days Quick Shipping
1 Year Hassle-Free Warranty

Shop safely

30 Days Return Policy

Up to 21% off

This Ignition Switch is built for reliable performance on John Deere AM103290, AM105171 and more (see fitment table below).

It allows the operator to start and stop the engine, enabling smooth operation of the Lawn Mower, making it an ideal replacement for OEM part numbers 807829, 691656, 555375GS, 790951 and others (see OE reference table below).

With a direct-fit design for easy installation and backed by a 1-year warranty, it’s a dependable solution for Lawn Mower owners seeking long-lasting quality and performance.

Product Specifications

Technical Specifications
Voltage	12 Volts
Current	200-300 Amps
No. of Terminals	3 Terminals
Weight	0.50 Pounds
Dimension	6 x 3.5 x 3.5 inches

Shipping & Returns

Enjoy free US shipping on orders over $70 in rugged & heavy-duty packaging!
Not satisfied with your purchase? Contact us within 30 days. We're here to help!

Fitment Table

Fitment Details

Make	Model	Year	Engine

John Deere	L120	All
John Deere	L110	All
John Deere	Z425	All
John Deere	L130	All
John Deere	LA115	All
John Deere	LA105	All
John Deere	L100	All
John Deere	Z445	All
John Deere	LA145	All
John Deere	Z225	All
John Deere	L111	All
John Deere	L118	All
John Deere	LA125	All
John Deere	LA135	All
John Deere	LA120	All
John Deere	LA110	All
John Deere	L108	All
John Deere	LA130	All
John Deere	LA175	All
John Deere	X110	All
John Deere	LA140	All
John Deere	Z645	All
John Deere	X140	All
John Deere	L105	All

OEM	OEM Reference

Briggs & Stratton	691656
Briggs & Stratton	790951
Briggs & Stratton	807829
Briggs & Stratton	555375GS
Trombetta	812-1201-211-05
	846820
Trombetta	812-1201-211-06
	5409H
	745000
	745000MA
	745001
John Deere	AM103290
John Deere	AM105171
	21261
	24285
	424285
	924285

Testimonials

It works!

Installed this on my Toro LX420 and it solved my issue! Key would not start the mower before, but this installed easily and fixed the problem.

C. Steckroth
Verified Buyer
Works Like a Charm

Installed this solenoid on my John Deere mower, and it started right up. No more clicking or hesitation. It’s been working flawlessly for weeks now.

Chris
Verified Buyer
Good Fit, Great Price

Fit my John Deere 691656 perfectly. The quality feels solid and the tractor starts every time now. Took off one star because the mounting holes needed slight adjustment, but otherwise great.

Jason
Verified Buyer
Quick Fix for Starter Issues

Used this solenoid on a John Deere with part number AM103290. Been about a month and it's working great. Would be nice if it came with hardware, but no big deal.

Mark
Verified Buyer
Perfect Replacement Part

This starter solenoid was exactly what I needed. Fit right in and started up immediately. Much better than the overpriced OEM version. Highly recommend it!

Lindsey W
Verified Buyer

What's in the box?

Solenoid Switch

Rugged Packaging

Still not sure?

Ask one of our parts experts !

Email : support@partsworldusa.com

Call us at : +1 302 451-9920

Working Days : 9 am - 5 pm (ET) (Monday- Friday)

How do I know if my solenoid switch needs replacing?

Common signs include a clicking sound when turning the key, failure to engage the starter, intermittent power delivery, or the engine not starting at all.

Do you offer a warranty on your parts ?

Our parts are made with high-end raw material, and with strict Quality Control. However, for the customer's peace of mind, we offer a 1 year hassle-free warranty.

Can I install this myself?

We recommend installation by a qualified technician to ensure proper fitment and to prevent damage.

What should I do if the solenoid switch doesn't work after installation?

Double-check all wiring connections, the battery voltage, and the solenoid’s terminals. Ensure the soleniod switch is in the correct position. If the issue persists, contact our support team for troubleshooting or replacement options.

Is the switch tested before it’s shipped?

Yes, each unit is thoroughly tested for quality and performance before shipping.

Do I need to make any modifications to fit this in my Vehicle?

No, this is a direct-fit replacement manufactured to OEM specifications, so no modifications are typically necessary.

What kind of maintenance does the switch need?

Our ignition switch is mostly maintenance-free, but check for terminal corrosion, secure wiring, and keep the unit clean and dry.

Works as expected

Exact fit. Been working perfectly.

Riding in style on the old 4610!

Fit my 4610 perfectly! Works as it should. Very pleased.

Perfect Fit and Function

This is the right gauge and works like a charm. Fit was very good snd no modifications were needed and all the gauges are accurate and easy to read. The build quality feels solid, and it looks just like the original, which keeps the dash looking clean and classic. It’s a great replacement if your old cluster is fading or malfunctioning. Definitely worth it for keeping your tractor running smoothly and safely

All good and very reasonable price.

Letter codes on the tabs are slightly different and you may need to use an additional 12V relay depending on the engine magneto/alternator but switch is identical fit, well made.

Delivered used and broken

Didn’t work at all. Switch came broken and wouldn’t do anything.
