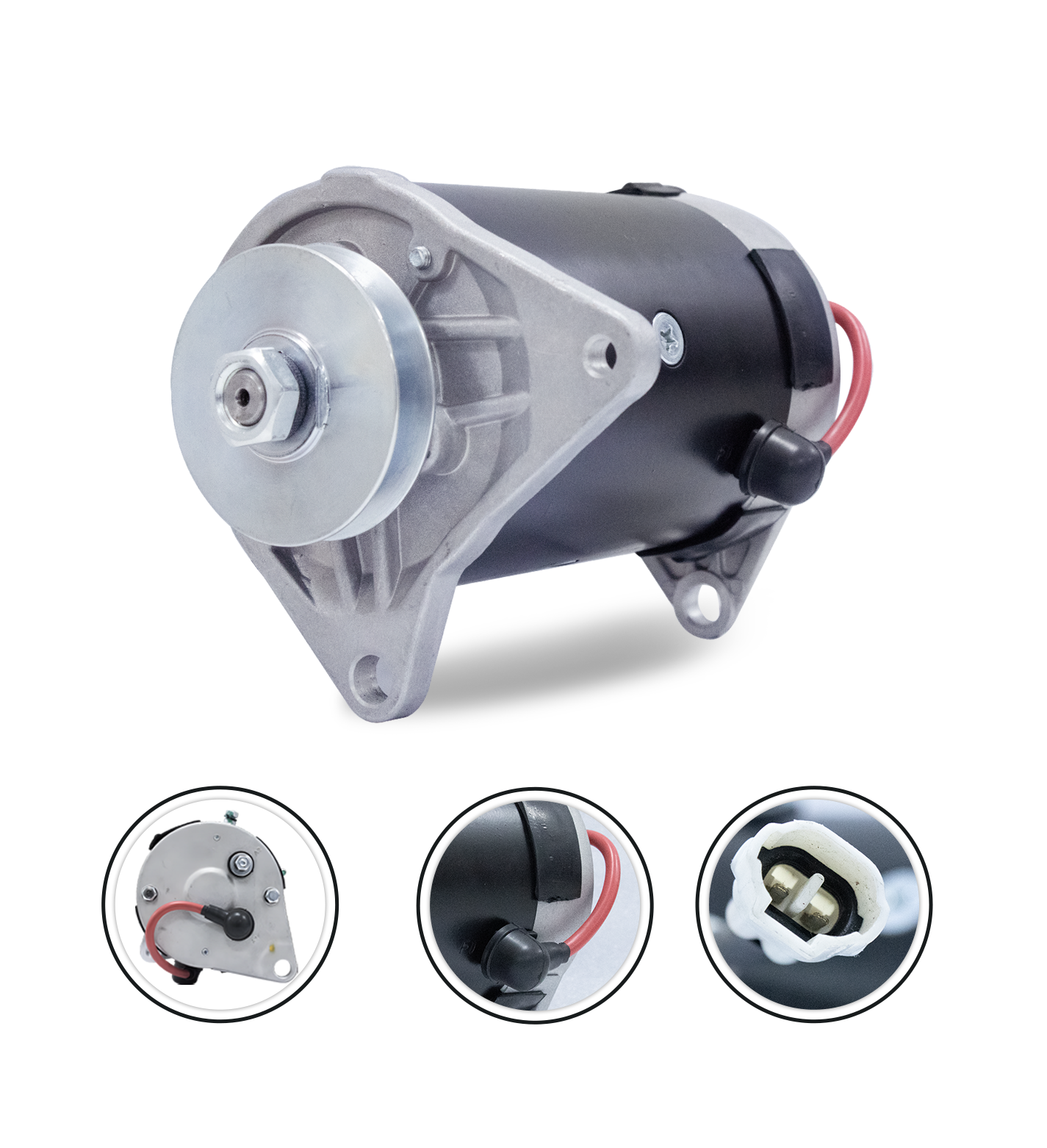

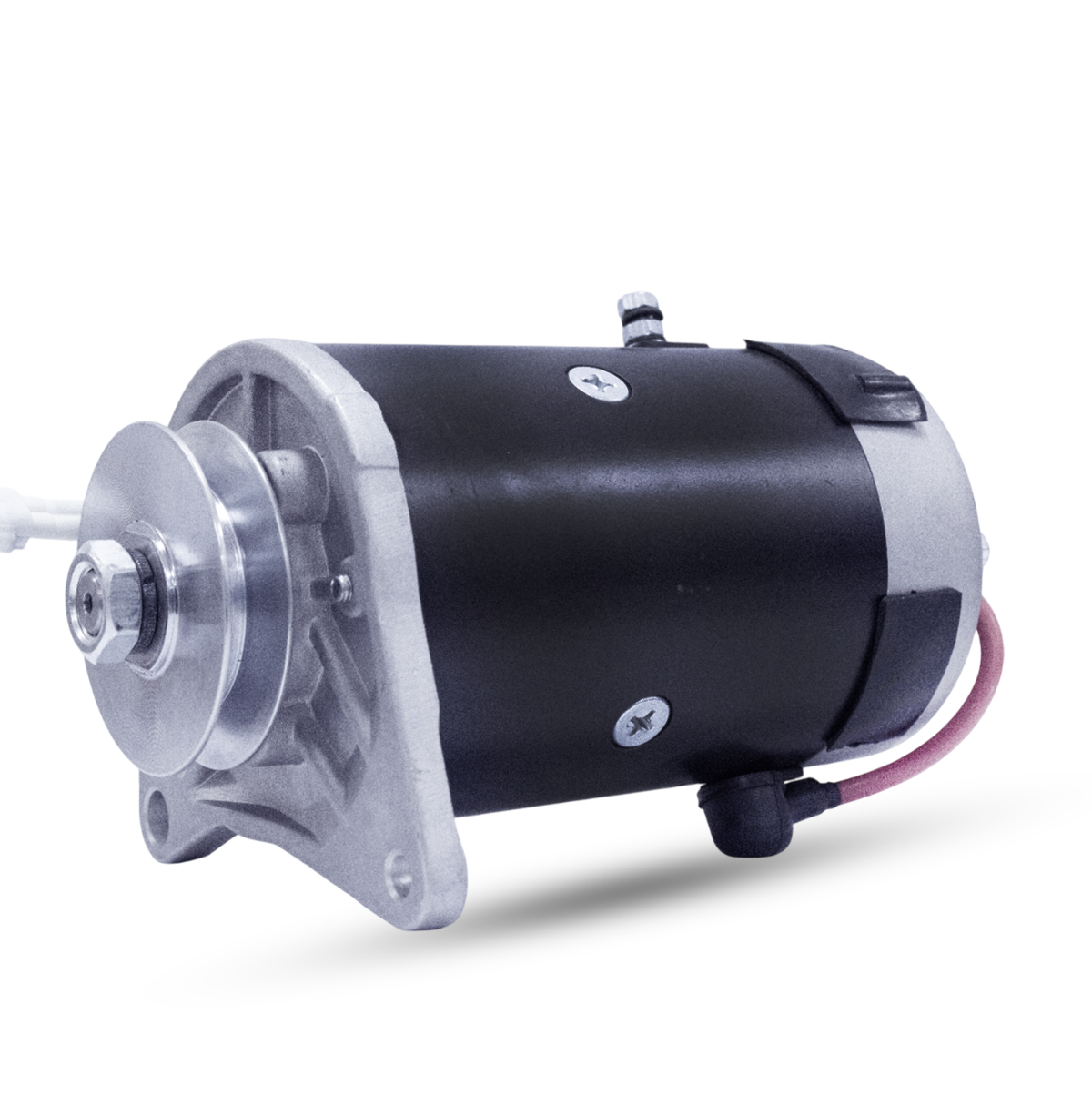

• 12V 15A starter generator for Yamaha G16A Ultima golf cart – front angled view

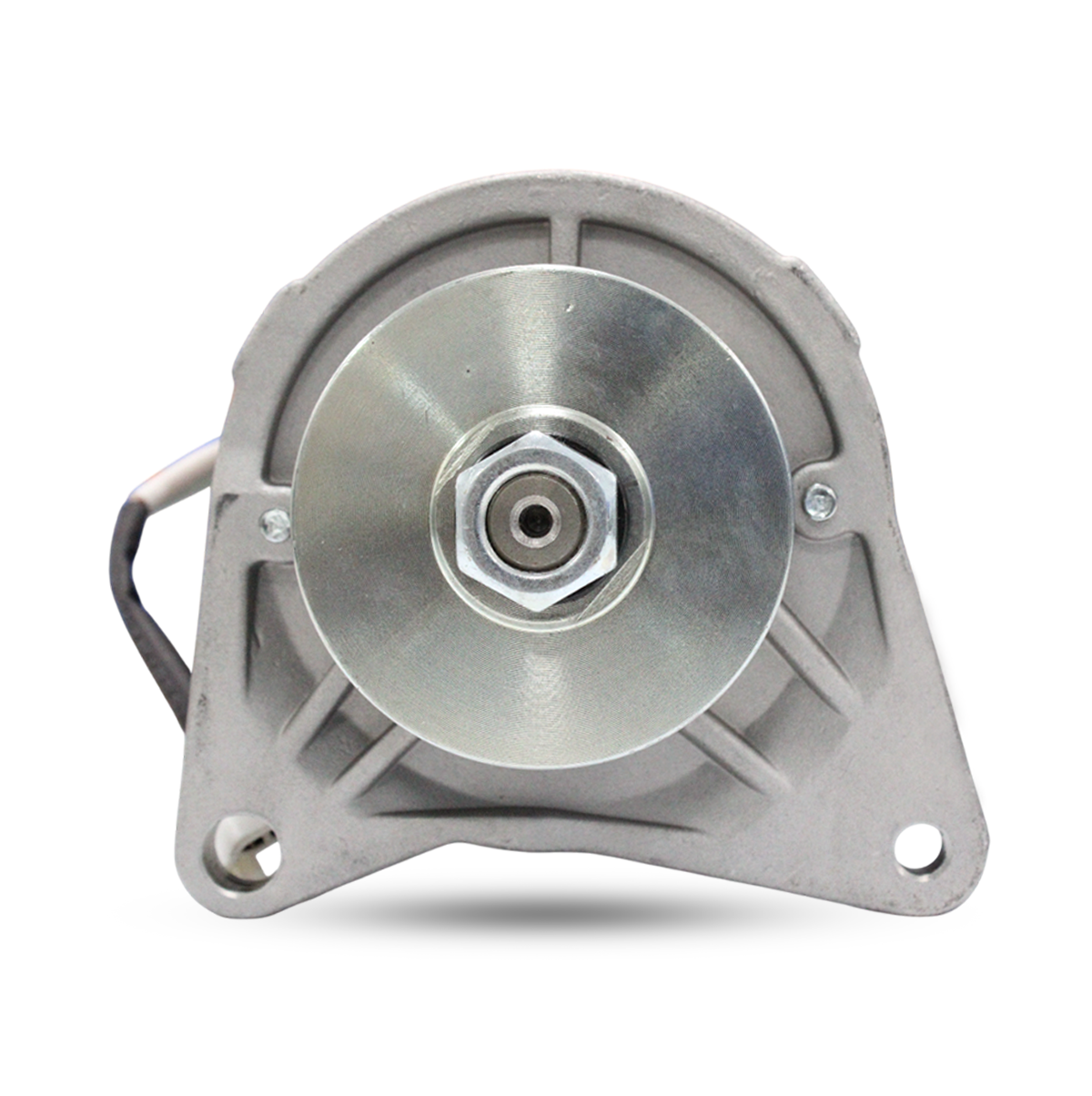

  • Close-up view of Yamaha G16A starter generator front mounting flange and shaft

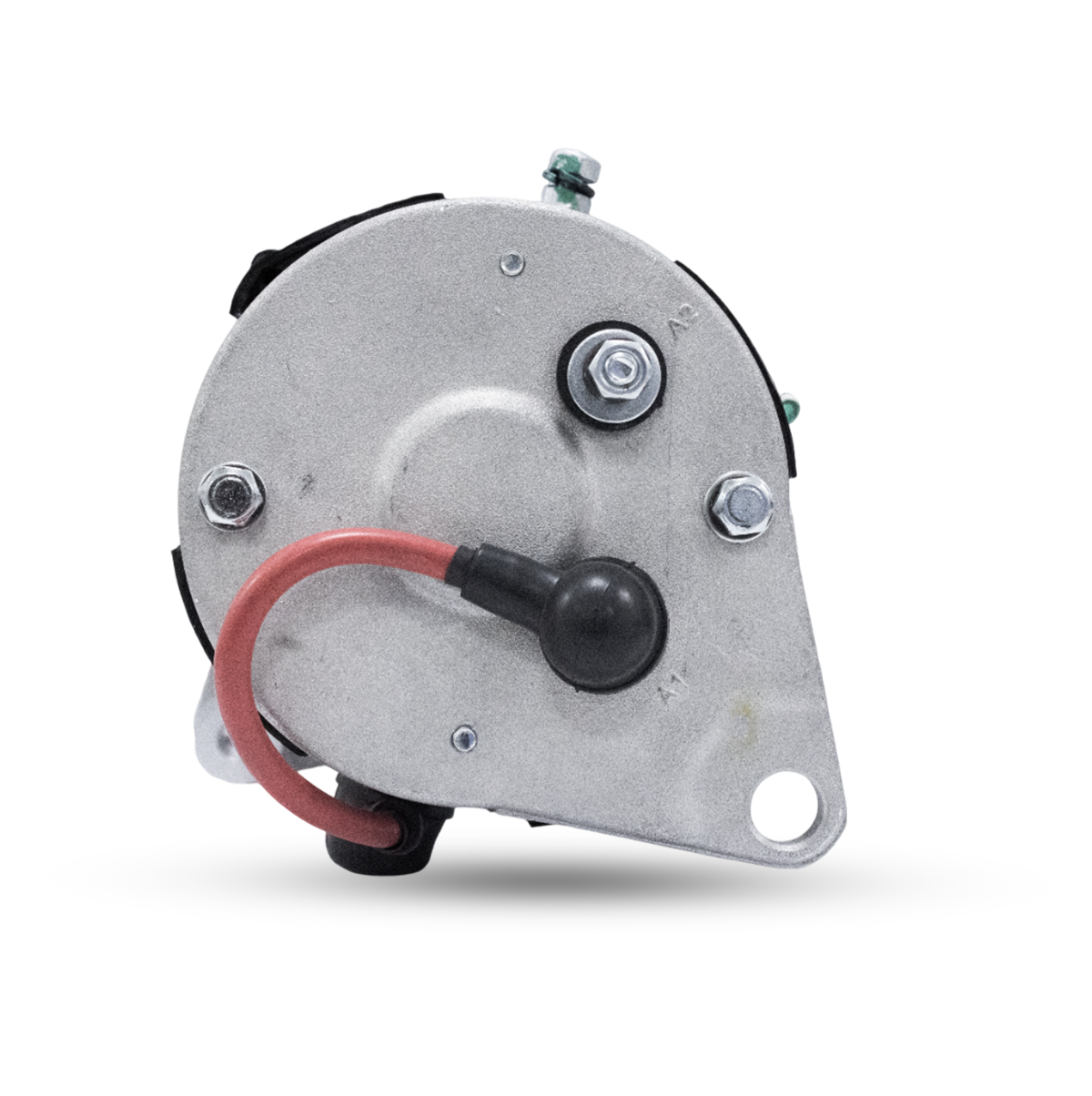

  • Rear view of starter generator with terminal layout for Yamaha G16A Ultima

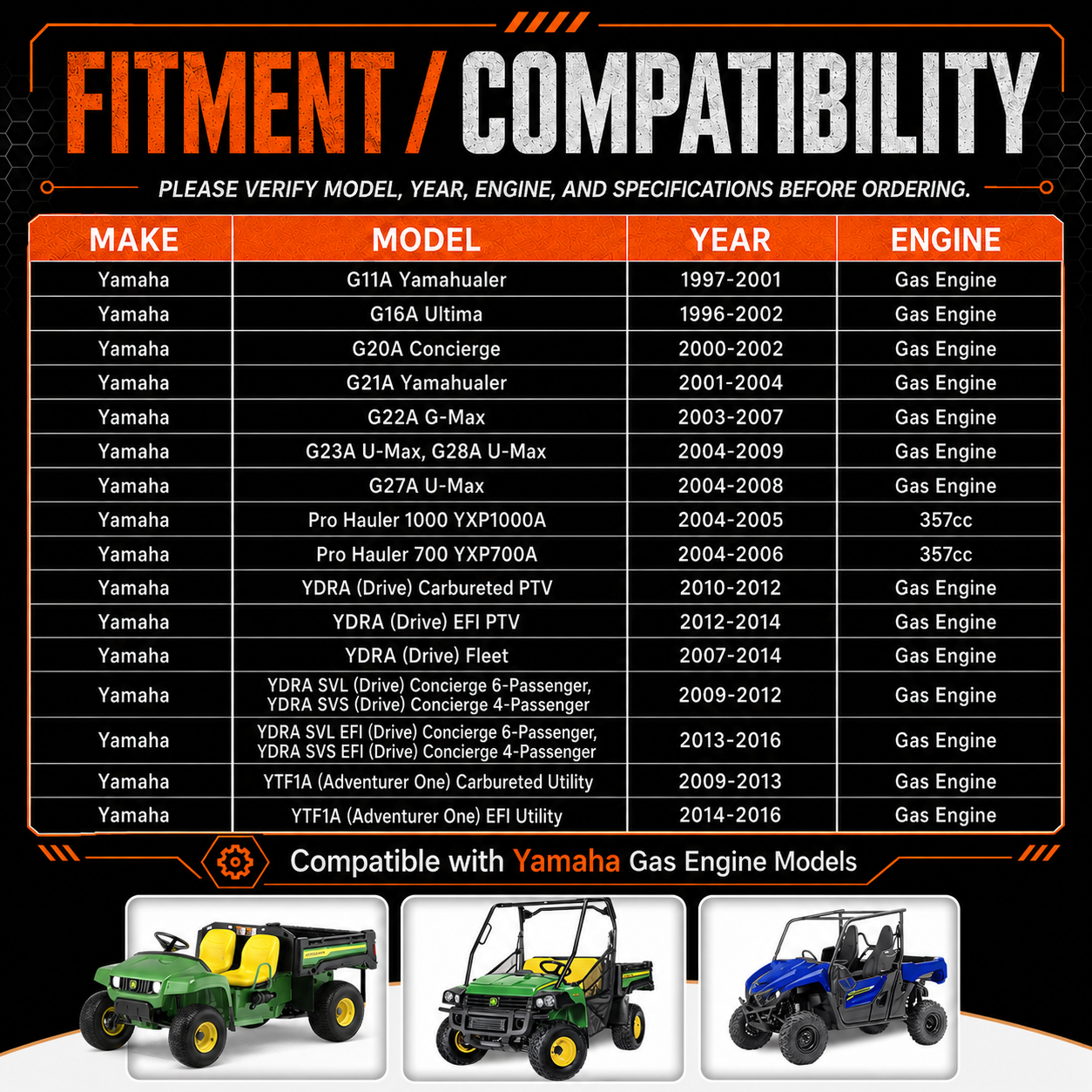

  • OEM fitment and compatibility chart for 12V 15A starter generator Yamaha G16A

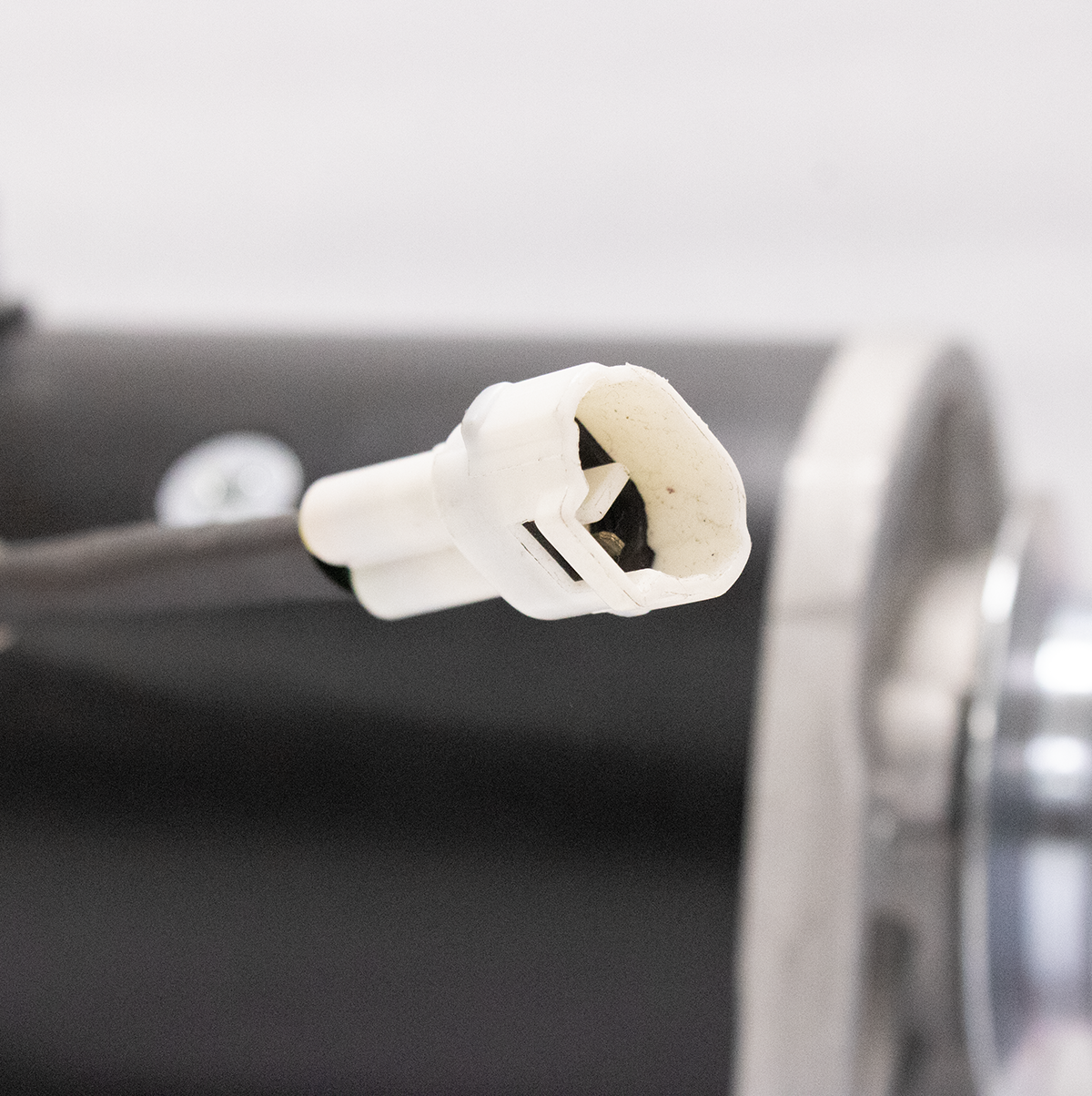

  • Top view of Yamaha G16A starter generator showing wire connectors and housing cap

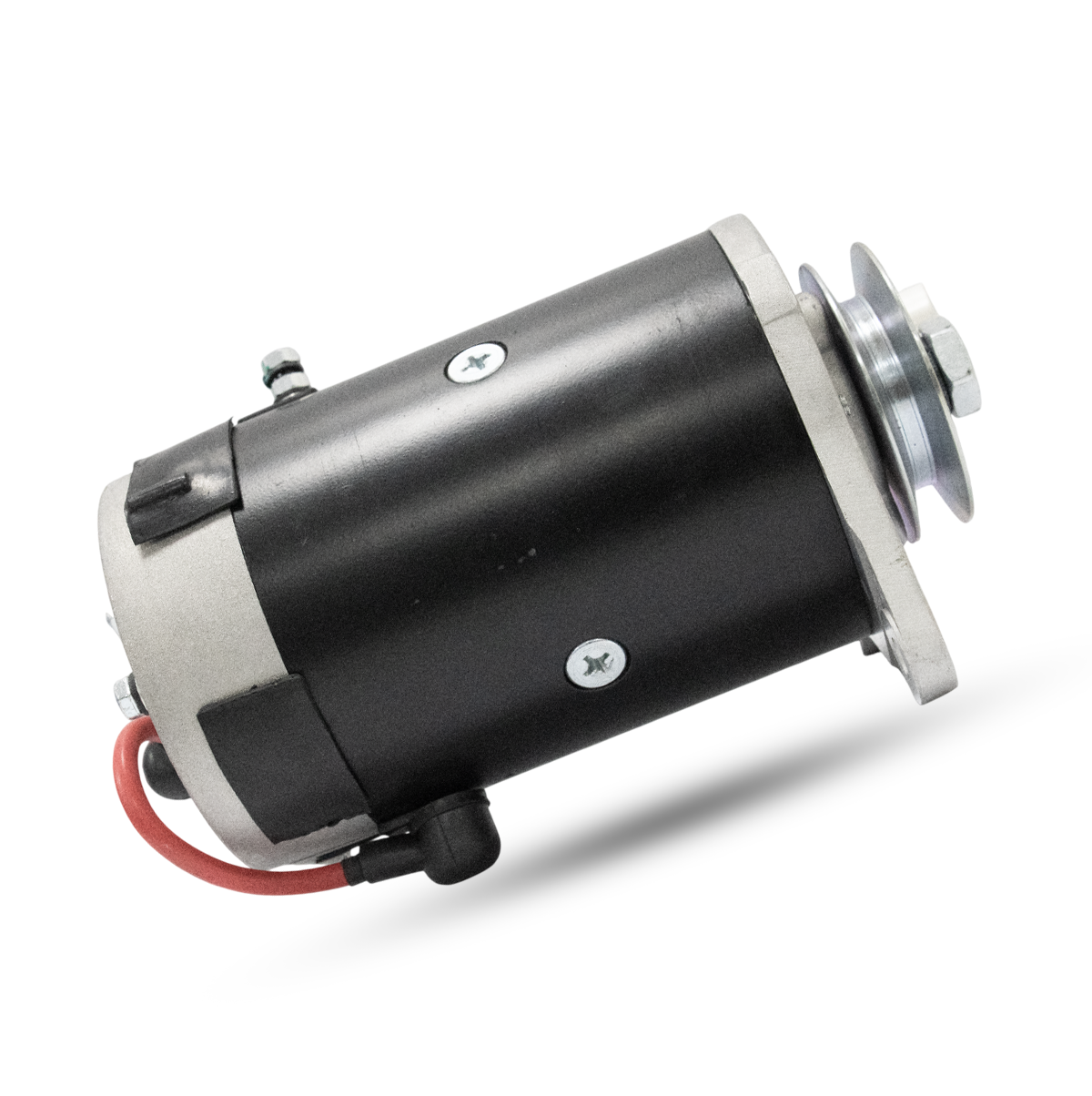

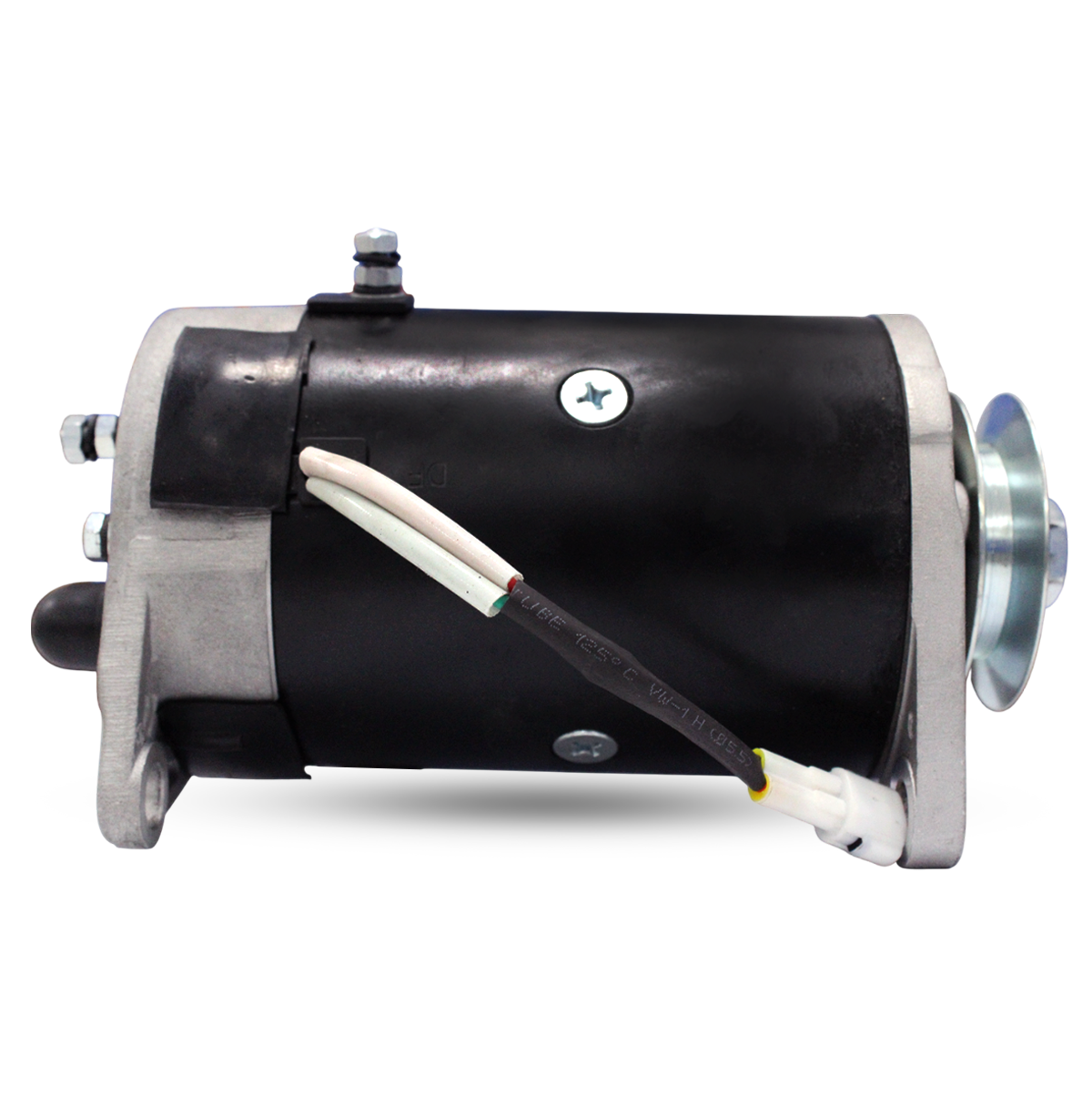

  • Side view of starter generator showing product label and support bracket

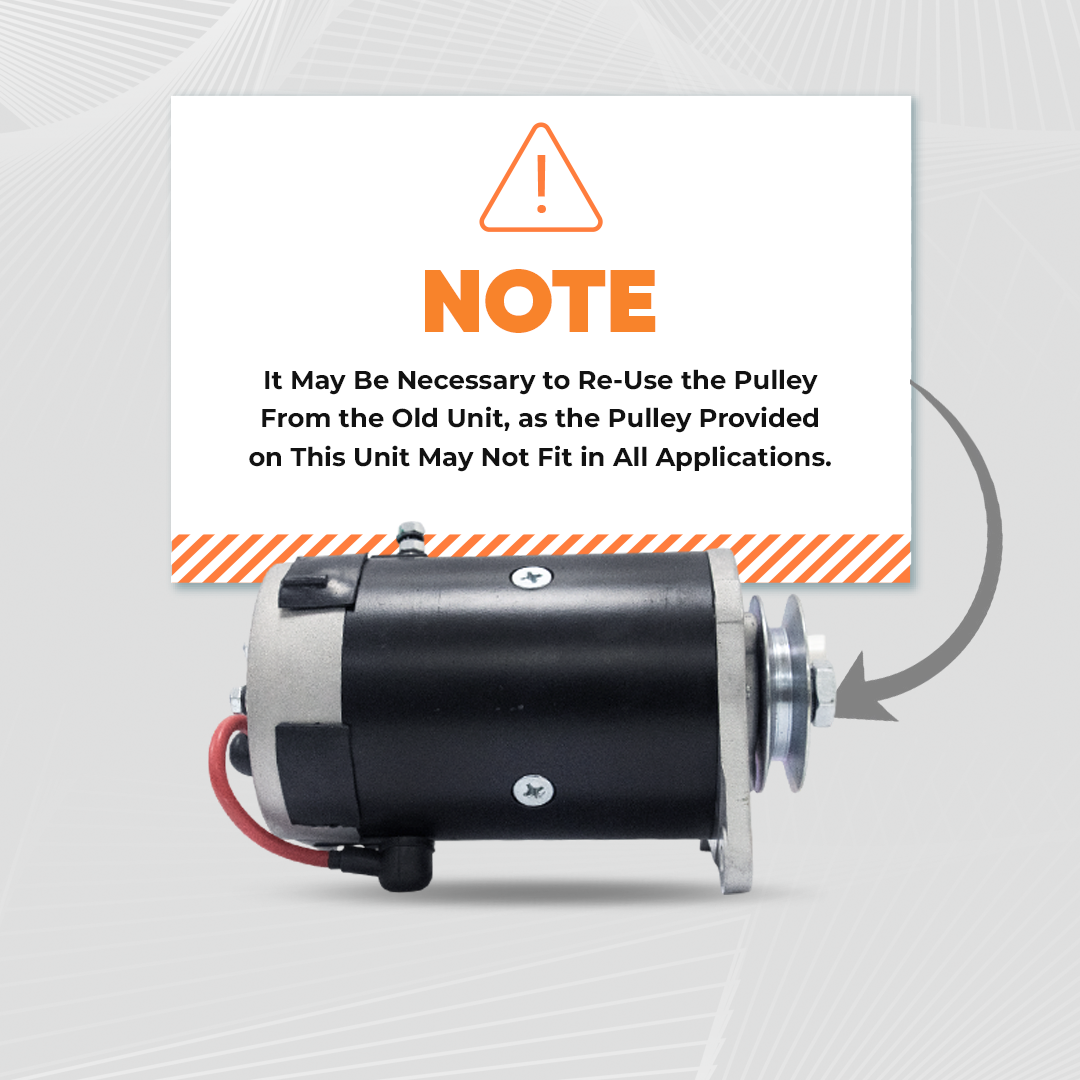

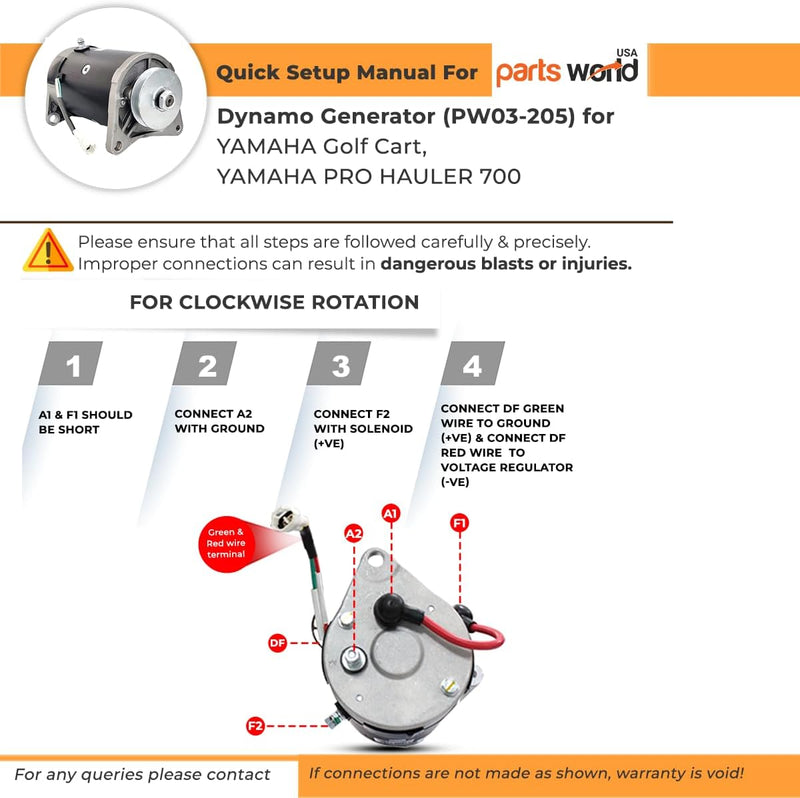

  • Caution note and install instruction for Yamaha golf cart starter generator
  • Parts World USA starter generator box for Yamaha G16A and G-series golf carts
  • Flat back view of 12V starter generator for Yamaha G16A with visible terminals

PW03-205

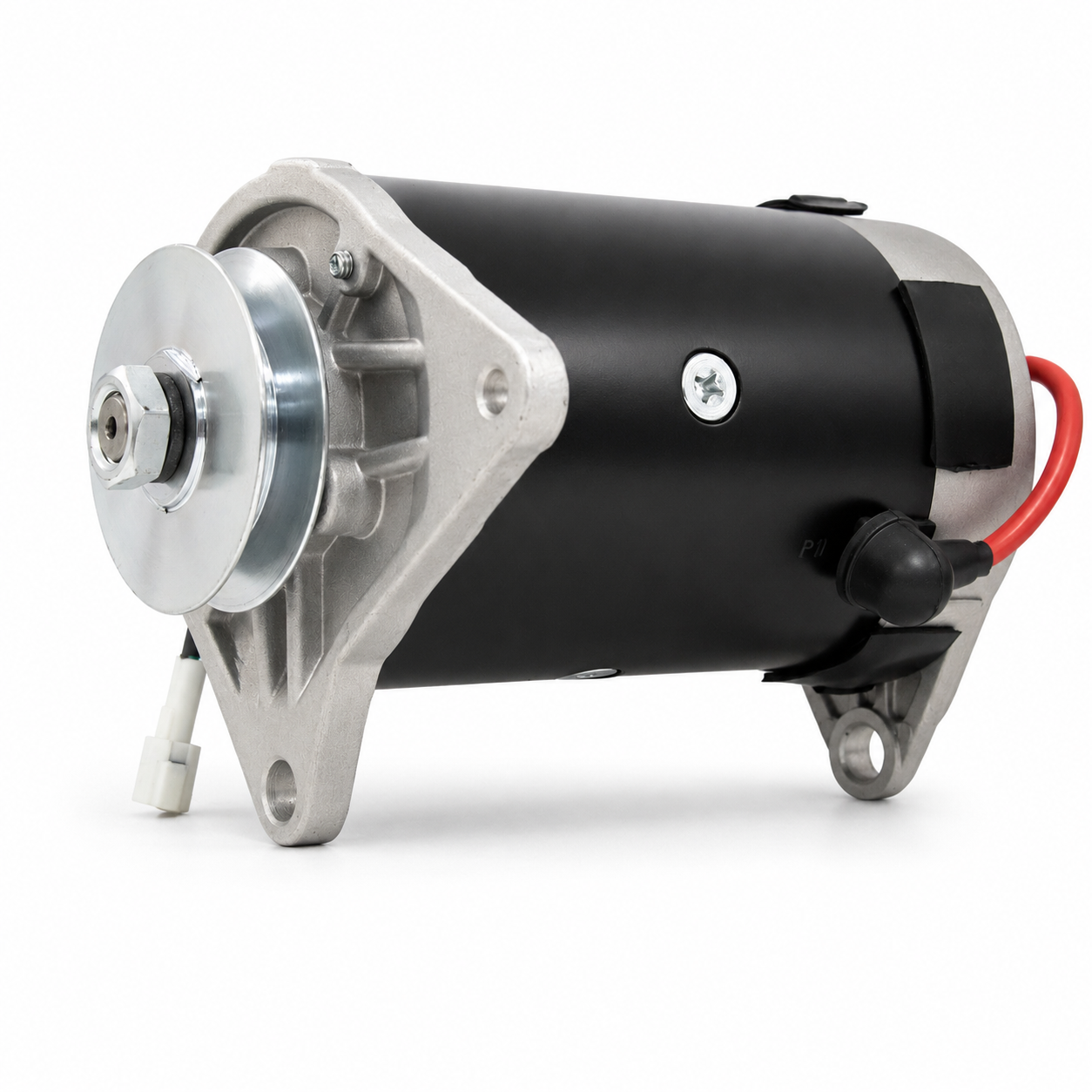

Starter Generator for Yamaha G16A Ultima (1996–2002) | 420-44001

Starter Generator for Yamaha G16A Ultima (1996–2002) | 420-44001

$149.99 USD
$149.99 USD $176.99 USD
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa
  • 30 Days Return
  • 2-3 Days Quick Shipping
  • 1 Year Hassle-Free Warranty
Up to 15% off

Product Specifications

Technical Specifications
Volts 12 Voltage
Current 15 Amps
Pulley Class V1
Weight 18.7 Pounds
Rotation CW
Dimension 12 x 7 x 6.5 inches

Shipping & Returns

  • Enjoy free US shipping on orders over $70 in rugged & heavy-duty packaging!
  • Not satisfied with your purchase? Contact us within 30 days. We're here to help!

Fitment Table

Fitment Details

Make Model Year Engine
YAMAHA G11A Yamahauler 1997–2001 Gas Engine
YAMAHA G16A Ultima 1996–2002 Gas Engine
YAMAHA G20A Concierge 2000–2002 Gas Engine
YAMAHA G21A Yamahauler 2001–2004 Gas Engine
YAMAHA G22A G-Max 2003–2007 Gas Engine
YAMAHA G23A U-Max 2004–2009 Gas Engine
YAMAHA G27A U-Max 2004–2008 Gas Engine
YAMAHA G28A U-Max 2004–2009 Gas Engine
YAMAHA YDRA (Drive) Fleet 2007–2014 Gas Engine
YAMAHA YDRA (Drive) Carbureted PTV 2010–2012 Gas Engine
YAMAHA YDRA (Drive) EFI PTV 2012–2014 Gas Engine
YAMAHA YDRA SVS (Drive) Concierge 4-Passenger 2009–2012 Gas Engine
YAMAHA YDRA SVS EFI (Drive) Concierge 4-Passenger 2013–2016 Gas Engine
YAMAHA YDRA SVL (Drive) Concierge 6-Passenger 2009–2012 Gas Engine
YAMAHA YDRA SVL EFI (Drive) Concierge 6-Passenger 2013–2016 Gas Engine
YAMAHA YTF1A (Adventurer One) Carbureted Utility 2009–2013 Gas Engine
YAMAHA YTF1A (Adventurer One) EFI Utility 2014–2016 Gas Engine
YAMAHA Pro Hauler 700 YXP700A 2004–2006 357cc
YAMAHA Pro Hauler 1000 YXP1000A 2004–2005 357cc
OEM OEM Reference
ARROWHEAD 420-44001
ARROWHEAD 420-44006
J & N 420-44001
J & N 420-44006
ARROWHEAD GHI0006
ARROWHEAD GHI0010
LESTER 15430
PIC 304-115
HITACHI GSB107-06K
YAMAHA JN6-H1100-02-00
YAMAHA JN6-H1100-03-00
YAMAHA JN6-H1100-04-00

Testimonials

  • All Good

    arrived on time, packaged well, best of all, the Starter worked.

    Doris Douglas
    Verified Buyer

  • as described

    Worked great for the older model cart we own.

    ann hudler
    Verified Buyer

  • Starter generator

    This product was easy to install and started the machine right up.

    Kim Flake
    Verified Buyer

  • Double check application wiring

    Bought knowing I may have to re wire. Worked on Yamaha g16 gas cart so far so good thx

    Jimmy
    Verified Buyer

  • Golf cart starter / generator

    I like the price of this strayer/ generatoit work great

    Ed Carl
    Verified Buyer
Feature Image

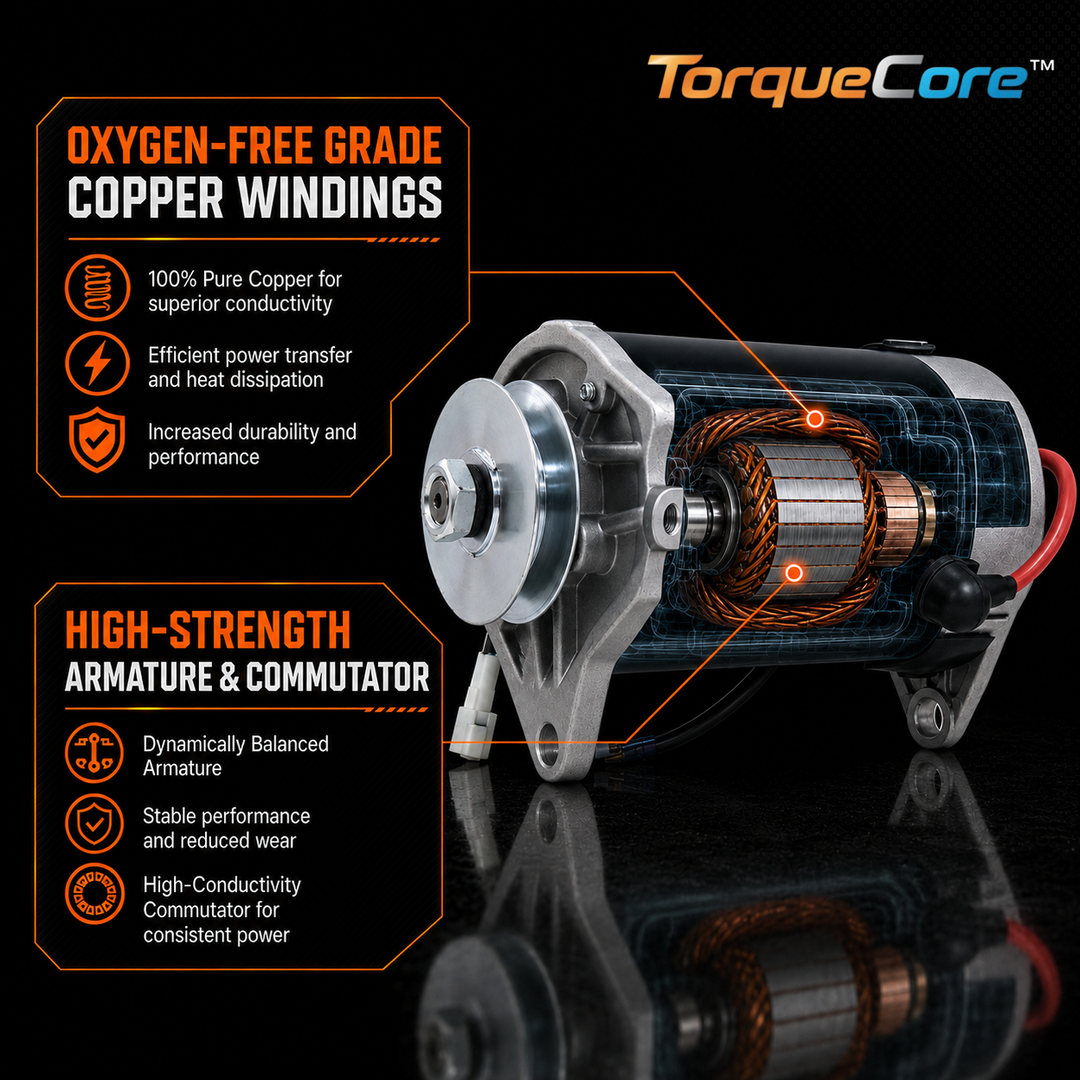

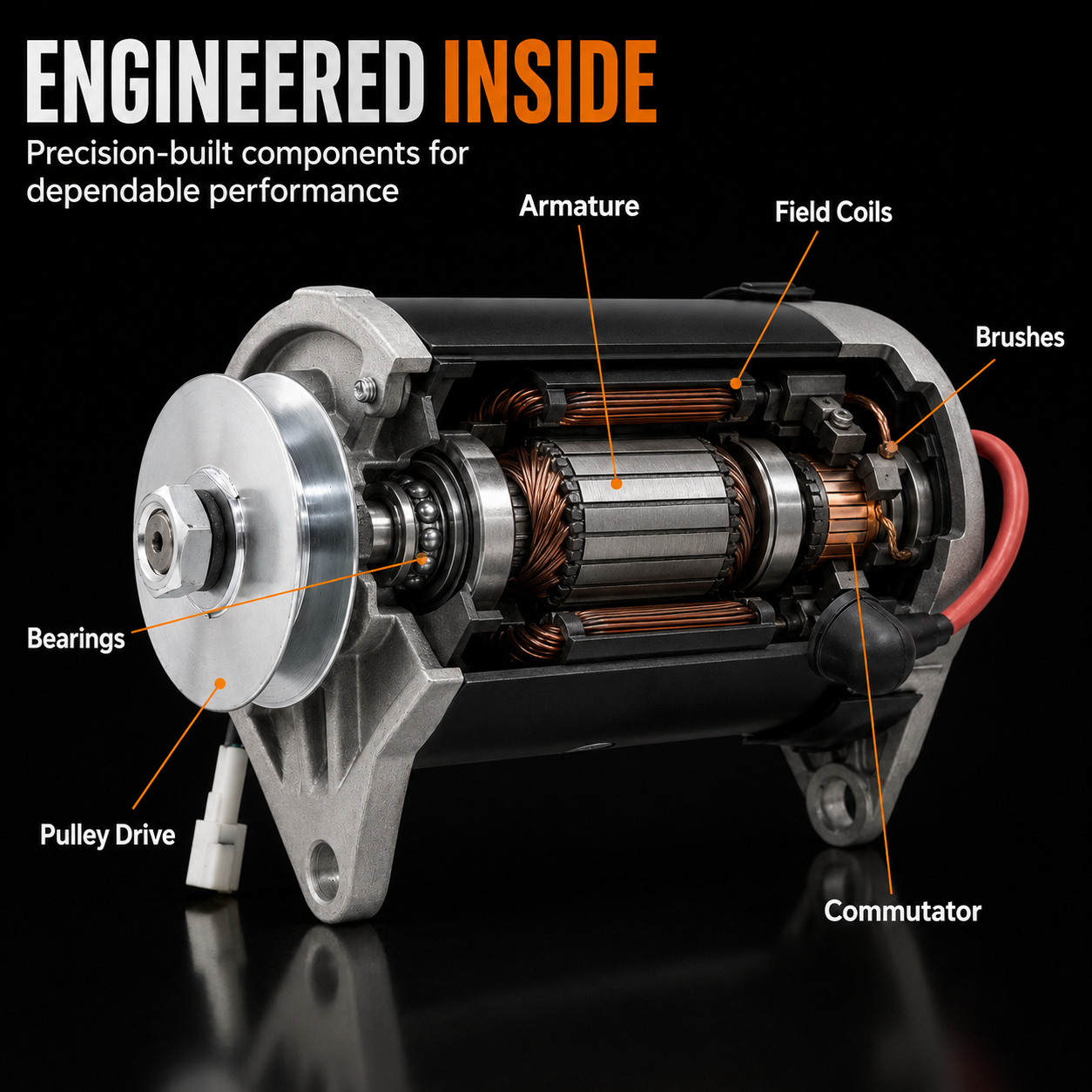

  • Oxygen-Free Grade Copper Windings
    • 100% Pure Copper for superior conductivity
    • Efficient power transfer and heat dissipation
    • Increased durability and performance
  • High-Strength Armature & Commutator
    • Dynamically Balanced Armature
    • Stable performance and reduced wear
    • High-Conductivity Commutator for consistent performance
Feature Image

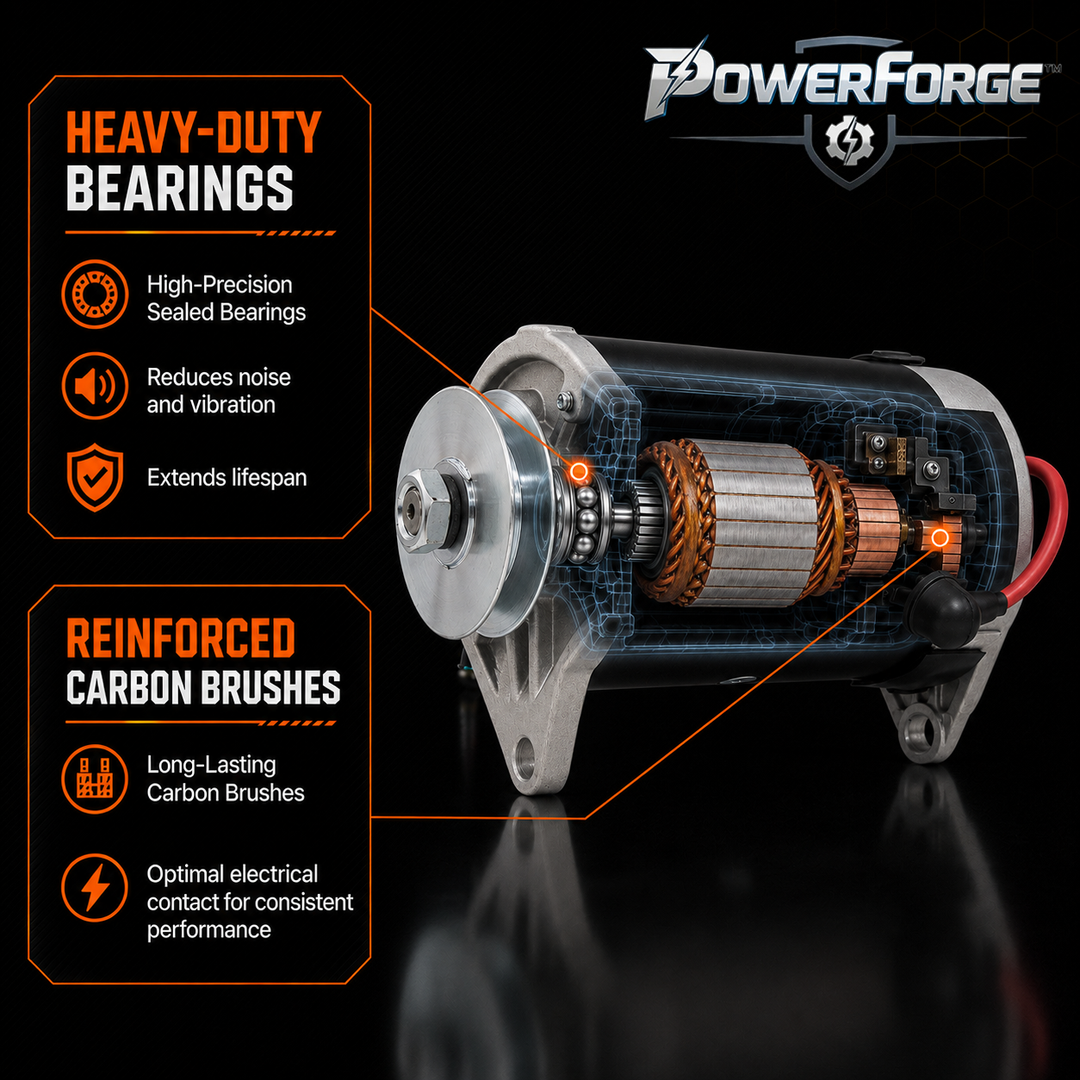

  • Heavy-Duty Bearings
    • High-Precision Sealed Bearings
    • Reduces noise and vibration
    • Extends lifespan
  • Reinforced Carbon Brushes
    • Long-Lasting Japanese Carbon Brushes
    • Optimal electrical contact for consistent performance

Product Guides

Installation Guide
Troubleshooting Guide

What's in the box?

Starter Generator

Starter Generator

Instruction Manual

Instruction Manual

Troubleshooting Guide

Troubleshooting Guide

Test Report

Test Report

Rugged Packaging

Rugged Packaging

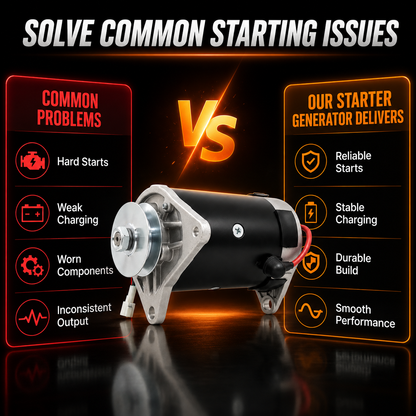

How do I know if my starter generator needs replacing?

Common signs include difficulty starting, battery not charging, strange noises during operation, or visible wear/damage on the unit.

Do you offer a warranty on your parts ?

Our parts made with high-end raw material, and with strict Quality Control. However, for the customer's peace of mind, we offer a 1 year hassle-free warranty.

Can I install this myself?

We recommend installation by a qualified technician to ensure proper fitment and to prevent electrical damage. Please ensure you follow the provided wiring diagram to avoid voiding the warranty!

What should I do before installing the starter generator?

Before installation, make sure the voltage regulator is functioning properly. Always disconnect the battery, inspect all wiring for any signs of damage, and ensure that the mounting surfaces are clean and free of debris for a secure installation.

Is the starter generator tested before shipping?

Yes, each unit is strictly quality tested with equipment from D&V Canada before being shipped. The test report is attached to the unit.

Do I need to make any modifications to fit this in my golf cart?

No, this is a direct-fit replacement manufactured to OEM specifications, so no modifications are typically necessary.

What kind of maintenance does the starter generator need?

Our product is designed to be mostly maintenance-free, but periodic checks of wiring, mounting bolts, and cleanliness are prudent.

Customer Reviews

Based on 17 reviews
47%
(8)
24%
(4)
12%
(2)
6%
(1)
12%
(2)
D
Doris Douglas
All Good

arrived on time, packaged well, best of all, the Starter worked.

R
Remote Guy
Works on a G16A cart with some modification.

Working in a G16A cart but required both the A (Starting) and F (Charging) leads to be reversed and needed to use the old connector for the charging leads... but it is working. Bolted up without issue but noticed engine spinning backwards, read about the issue online and quickly determined the A leads (bolts on the end of the started) needed to be reversed. Checked charging with VOM and noticed they also needed to be reversed (smaller green and red leads with the white plastic connector). Once modifed, charging at 13.8VDC and starts without issue.

D
Darien W. Allred
ALT

THANK YOU. WORKS GOOD

A
Aaron I.
Good Generator but check your plug!

In the end this generator worked fine on my 4x2 Turf Gator. However after replacing everything in the charging system I still ending up taking the Gator in for repair. The issue ended up being the white plug on the generator. Even though it seems to fit the plug on the Gator perfectly it actually was not making contact on the inside so the plug was cut off and replaced with disconnects. So before you send it back...CHECK YOUR PLUG! Also your old pulley will probably need to be moved to the new generator since it is a good bit smaller than the one that comes on this but that is not a big deal. Impact wrench worked well to remove the old one.

G
Gary M
It does the job

The wiring was a bit confusing but it was a perfect fit and it works well. Just follow the included instructions and you’ll be fine, except I think the CW and CCW were also mixed up but thanks to YouTube I got it figured out.
